Product Description
The aerial work platform also called personal lift, man lift. It common used on factory, warehouse and service company.
The best solution for aerial work.
Lifting Height
6m 8m 10m
Load Capacity
130kg
Power
AC Electric / DC Battery
Why Use This Personal Man Lift ?
1. Light weight with beautiful design. The aerial work platform lift can be moves by manual push, one man can move it easily.
2. Lower fault rates. Hydraulic driving with simple control system. Much lower fault rates than other complex elevator system.
3. Much more lower cost. Simple control system and simple structure will lower the total service cost. Especially suitable for some low budget project. You can do maintenancework by yourself, no need any professional engineer.

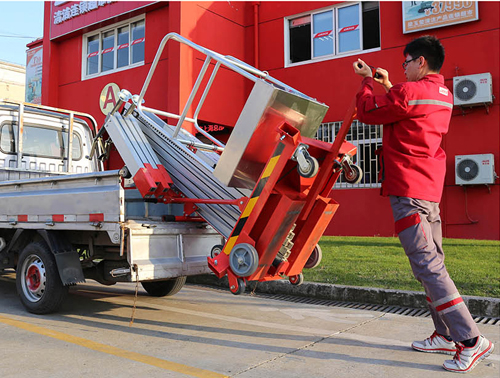

4. Easily loading & unloading. Special designed for one man loading into the truck or pickup car. No need extra crane or forklift.
Parameter |
EZSJL-4 |
EZSJL–6 |
EZSJL–8 |
EZSJL-10 |
Max Platform Height |
4.7m |
6.2m |
8m |
10.4m |
Platform Size |
0.67×0.66m |
0.67×0.66m |
0.67×0.66m |
0.67×0.66m |
Overall Length |
1.35m |
1.24m |
1.24m |
1.26m |
Overall Width |
0.81m |
0.81m |
0.81m |
0.81m |
Overall Height |
1.97 |
1.97m |
1.97m |
1.97m |
Load Capacity |
150kg |
150kg |
150kg |
130kg |
Power Source |
AC/DC |
AC/DC |
AC/DC |
AC/DC |
Weight |
275kg |
305kg |
335kg |
385kg |
