Product Description

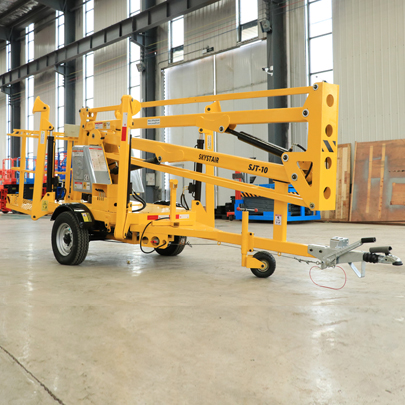

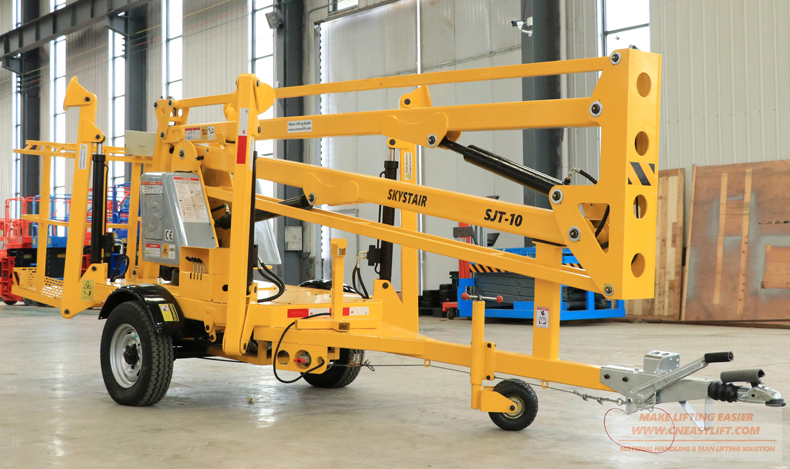

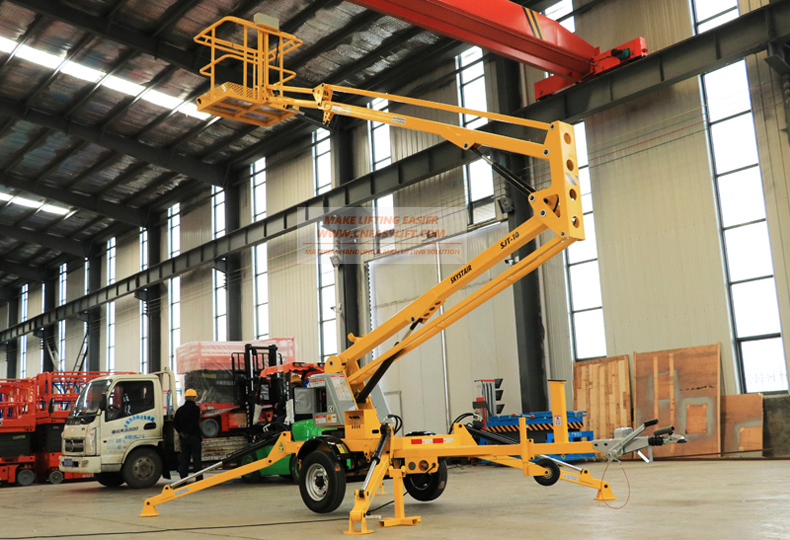

The SJT Series trailer mounted boom lift has an outstanding working envelope and intuitive controls,
allowing operators reach where they need to be.
Several option power for your choice
• AC Electric.
• Diesel + AC Electric.
• DC Battery.
Standard configuration of trailer boom lift
• Manganese steel rectangular tube as boom structure.
• 360° non-continuous turntable rotation.

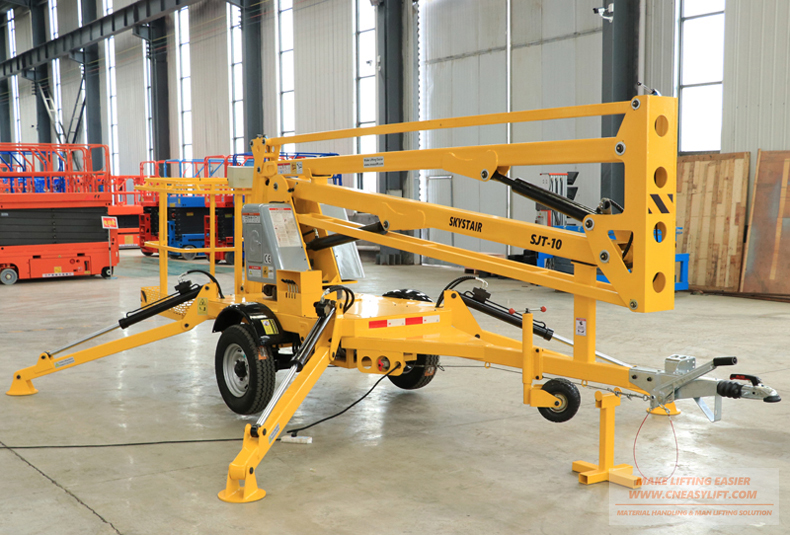

• 4 Hydraulic outriggers.
• Power: battery/diesel.

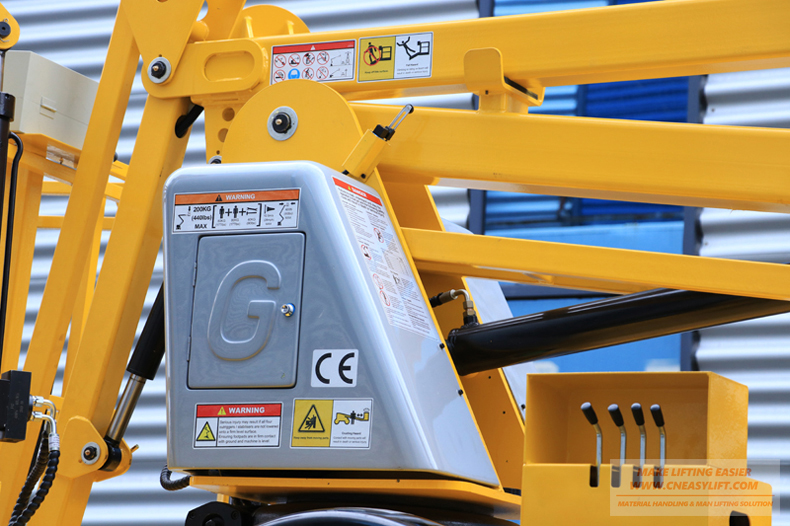

• Control panel both on top platform and ground.
|
Model |
Platform size |
Dimension(mm) |
Lifting Height |
Load Capacity |
Working Radius |
|
SJT-8 |
1200x800 |
5200x1585x1900 |
8m |
200kg |
4.5m |
|
SJT-10 |
1200x800 |
5400x1665×1900 |
10m |
200kg |
5.7m |
|
SJT-12 |
1200x800 |
6350x1665×1900 |
12m |
200kg |
6.4m |
|
SJT-14 |
1200x800 |
6200x1730x2100 |
14m |
200kg |
8.5m |
|
SJT-16 |
1200x800 |
7000x1730x2200 |
16m |
200kg |
9.5m |
